Magnum Tapes and Films Tapes Designed For Foam Bonding



Magnum Tapes and Films Adhesive Product Guide Specifications and Qualifications

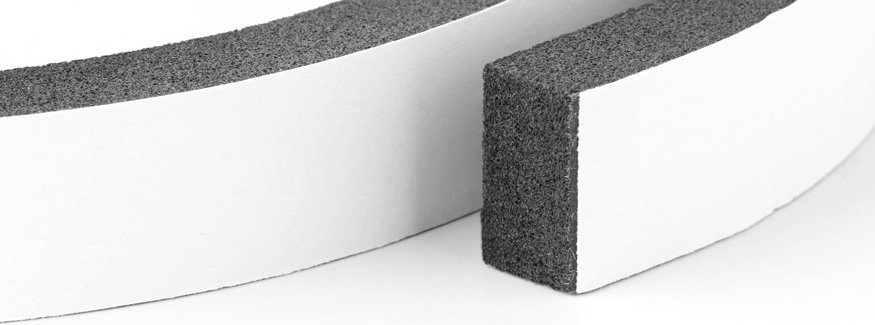

Foam Bonding PSA Tapes

Magnum Tapes & Films® has developed high-performance tapes with adhesive properties designed especially for foam bonding, including an aggressive rubber adhesive for bonding to polyethylene and polyurethane foams. Configurations are available with both rubber and Low VOC acrylic-based adhesive systems in double-coated and differential-coated constructions.

Magnum Tapes and Films Tapes Specifically Designed For Foam Bonding

DOUBLE-COATED TAPES

Product Liner* Liner Side Adhesive Carrier Air Side Adhesive Attributes
200 Series

R-235

PDF

76#
PCK
2.5 mil
200 Series Permanent Rubber
0.5 mil Clear PET 2.5 mil
200 Series Permanent Rubber
A self-wound, double-coated polyester film on a 76# poly coated kraft paper liner. The film is coated on both sides with an aggressive, permanent rubber-based pressure-sensitive adhesive. This aggressive rubber adhesive is excellent for bonding to polyethylene and polyurethane foams.
300 Series

R-321

PDF

76#
PCK
1.4 mil
300 Series Permanent Rubber
0.5 mil Clear PET 1.4 mil
300 Series Permanent Rubber
Aggressive permanent rubber adhesive with excellent initial tack and adhesion to a variety of difficult substrates. Excellent for ether and ester polyurethane foams. PET carrier provides good dimensional stability in die-cutting. Standard layflat liner.
500 Series

R-501

PDF

60#
SCK
1.4 mil
500 Series Permanent Rubber
0.5 mil Clear PET 1.4 mil
500 Series Permanent Rubber
Versatile foam bonding adhesive. Excellent for bonding polyethylene, rubber, and EPDM foams. Aggressive initial tack with excellent peel and surface wet-out. Thicker adhesive for rough surfaces. PET carrier provides good dimensional stability in die-cutting. Standard layflat liner.

R-502

PDF

60#
SCK
1.8 mil
500 Series Permanent Rubber
0.5 mil Clear PET 1.8 mil
500 Series Permanent Rubber
Permanent pressure-sensitive double-coated rubber tape with excellent peel and good shear performance. Both the air and liner sides provide a heavier glue thickness for the more challenging foam to foam bonding applications. Typically used for bonding EPDM, polyurethane, polyisoprene, polyethylene, and other closed-cell foams. Polyester carrier provides excellent dimensional stability for die-cutting applications.

R-508

PDF

60#
SCK
1.4 mil
500 Series Permanent Rubber
0.5 mil Clear PET 3.0 mil
500 Series Permanent Rubber
Versatile foam bonding adhesive. Excellent for bonding polyethylene, rubber, and EPDM foams. Aggressive initial tack with excellent peel and surface wet-out. Premium adhesive for irregular and hard-to-stick surfaces such as polyurethane foam. PET carrier provides good dimensional stability in die-cutting. Standard layflat liner. Excellent adhesive for case applications.
600 Series

A-613

PDF

76#
PCK
1.3 mil
600 Series Permanent Low VOC Acrylic
0.5 mil Clear PET 1.3 mil
600 Series Permanent Low VOC Acrylic
LSE adhesive. Excellent wet-out and bond to various difficult materials and surfaces such as polyurethane foams, TPO materials, ABS, Polyethylene, Polypropylene, and powder coated materials. PET carrier provides good dimensional stability in die-cutting. Standard layflat liner.

A-623

PDF

76#
PCK
1.5 mil
600 Series Permanent Low VOC Acrylic
0.5 mil Clear PET 1.5 mil
600 Series Permanent Low VOC Acrylic
LSE adhesive. Excellent wet-out and bond to various difficult materials and surfaces such as polyurethane foams, TPO materials, ABS, Polyethylene, Polypropylene, and powder coated materials. PET carrier provides good dimensional stability in die-cutting. Standard layflat liner.

A-624

PDF

76#
PCK
2.0 mil
600 Series Permanent Low VOC Acrylic
0.5 mil Clear PET 2.0 mil
600 Series Permanent Low VOC Acrylic
LSE adhesive. Excellent wet-out and bond to various difficult materials and surfaces such as polyurethane foams, TPO materials, ABS, Polyethylene, Polypropylene, and powder coated materials. PET carrier provides good dimensional stability in die-cutting. Standard layflat liner.

DOUBLE-COATED DIFFERENTIAL TAPES

Product Liner* Liner Side Adhesive Carrier Air Side Adhesive Attributes
900 Series

D-902

PDF

60#
SCK
1.4 mil
400 Series Permanent Rubber
0.5 mil Clear PET 1.6 mil
500 Series Permanent Rubber
Differential rubber tape. The liner side provides a general-purpose adhesive. Airside is coated with adhesive for bonding EPDM, polyurethane, polyisoprene, polyethylene, and other closed-cell foams.

D-904

60#
SCK
3.0 mil
400 Series Permanent Rubber
0.5 mil Clear PET 3.0 mil
500 Series Permanent Rubber
Differential rubber tape. The liner side is coated with a very thick general-purpose adhesive for rough, irregular, or porous surfaces. Airside is coated with a very thick adhesive designed for bonding the most challenging EPDM, polyurethane, polyisoprene, polyethylene, and other closed- and open-cell foams.

D-932

PDF

76#
PCK
1.4 mil
400 Series Permanent Rubber
0.5 mil Clear PET 1.6 mil
300 Series Permanent Rubber
Permanent differential pressure-sensitive double-coated rubber tape with excellent peel and good shear performance. The liner side is coated with a general-purpose glue for bonding to paper, metal, EPDM, polyisoprene, plastics, and most low or unplasticized substrates. Airside is coated with glue for bonding ether and ester polyurethane foams. Polyester carrier provides excellent dimensional stability for die-cutting applications.

D-933

PDF

76#
PCK
1.4 mil
400 Series Permanent Rubber
0.5 mil Clear PET 1.8 mil
300 Series Permanent Rubber
Permanent differential pressure-sensitive double-coated rubber tape with excellent peel and good shear performance. The liner side is coated with a general-purpose glue for bonding to paper, metal, EPDM, polyisoprene, plastics, and most low or unplasticized substrates. Airside is coated with a heavier glue thickness for bonding ether and ester polyurethane foams. Polyester carrier provides excellent dimensional stability for die-cutting applications.

D-935

PDF



76#
PCK
1.4 mil
400 Series Permanent Rubber
0.5 mil Clear PET 2.0 mil
200 Series Permanent Rubber
A differential, self-wound, double-coated polyester film on a 76# poly coated kraft paper liner. Coated film on both sides with an aggressive, permanent rubber-based pressure-sensitive adhesive. A general-purpose rubber adhesive on the liner side bonds to a wide variety of substrates. The aggressive rubber adhesive on the airside is excellent for bonding to polyethylene and polyurethane foams.

D-952

PDF

76#
PCK
1.4 mil
600 Series Permanent Low VOC Acrylic
0.5 mil Clear PET 3.0 mil
500 Series Permanent Rubber
Permanent differential pressure-sensitive double-coated acrylic /rubber tape. The liner side is coated with a permanent pressure-sensitive acrylic adhesive with excellent peel adhesion and wet-out to various substrates, including low surface energy plastics. Excellent resistance to aging, ultra-violet light. Airside is coated with aggressive permanent rubber adhesive with excellent initial tack and adhesion to various difficult substrates. Excellent for bonding to polyethylene foams. Polyester carrier provides excellent dimensional stability for die-cutting applications.

D-953

PDF

76#
PCK
1.4 mil
500 Series Permanent Rubber
0.5 mil Clear PET 1.5 mil
600 Series Permanent Low VOC Acrylic
Permanent differential pressure-sensitive double-coated acrylic /rubber tape with excellent peel and good shear performance. The liner side is coated with a general-purpose rubber glue for bonding to paper, metal, EPDM, polyisoprene, plastics, and most low or unplasticized substrates. Airside is coated with an LSE acrylic adhesive with excellent wet out and bond to various difficult materials and surfaces such as polyurethane foams, TPO materials, ABS, polyethylene, polypropylene, and powder coated materials. Polyester carrier provides excellent dimensional stability for die-cutting applications.

TRANSFER TAPES

Product Liner* Adhesive Attributes
200 Series

R-204

PDF

76#
PCK
4.0 mil
200 Series Permanent Rubber
Aggressive permanent rubber adhesive with excellent initial tack and adhesion is suitable for many substrates, including ether and ester polyurethane and polyethylene foams. Due to the absence of a carrier, this finger-lift transfer tape is more conformable to a wide range of irregular and uneven substrates.
300 Series

R-302

PDF

76#
PCK
4.0 mil
300 Series Permanent Rubber
Aggressive permanent rubber adhesive with excellent initial tack and adhesion to a variety of difficult substrates. Excellent for ether and ester polyurethane foams. This transfer tape is conformable to uneven surfaces and comes on a standard layflat liner.
500 Series

R-510

PDF

76#
SCK
2.0 mil
500 Series Permanent Rubber
Extended liner aggressive permanent rubber adhesive. Excellent for bonding corrugated and packaging materials. Aggressive initial tack with excellent peel and surface wet-out. Dry edge for easy liner removal. Standard layflat liner.
600 Series

A-602

PDF

76#
PCK
2.0 mil
600 Series Permanent Low VOC Acrylic
LSE adhesive. Excellent wet-out and bond to various difficult materials and surfaces such as polyurethane foams, TPO materials, ABS, Polyethylene, Polypropylene, and powder coated materials. Conformable. Standard layflat liner.

A-603

PDF

76#
PCK
3.0 mil
600 Series Permanent Low VOC Acrylic
LSE adhesive. Excellent wet-out and bond to various difficult materials and surfaces such as polyurethane foams, TPO materials, ABS, Polyethylene, Polypropylene, and powder coated materials. Conformable. Standard layflat liner.

A-604

PDF

76#
PCK
4.0 mil
600 Series Permanent Low VOC Acrylic
LSE adhesive. Excellent wet-out and bond to various difficult materials and surfaces such as polyurethane foams, TPO materials, ABS, Polyethylene, Polypropylene, and powder coated materials. Conformable. Standard layflat liner.

A-606

PDF

76#
PCK
2.5 mil
600 Series Permanent Low VOC Acrylic
LSE adhesive. Excellent wet-out and bond to various difficult materials and surfaces such as polyurethane foams, TPO materials, ABS, Polyethylene, Polypropylene, and powder coated materials. Conformable. Standard layflat liner.
*Most common liner is listed for each configuration; additional liner is available.
